The IPJ Series Industrial Inkjet Printers provide a flexible and cost-effective solution for printing directly onto products, packages and cases. The series includes both TIJ (Thermal Inkjet) and DOD (Drop-on-Demand) technologies, allowing the ideal printing system to be selected based on print height, production speed, substrate and application.
Depending on the selected ink, IPJ printers can print on a wide variety of porous and non-porous materials and surfaces, making them suitable for applications ranging from corrugated cases and paperboard to plastics and other packaging materials.

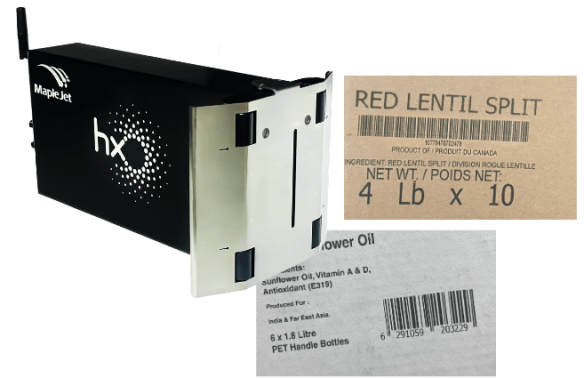

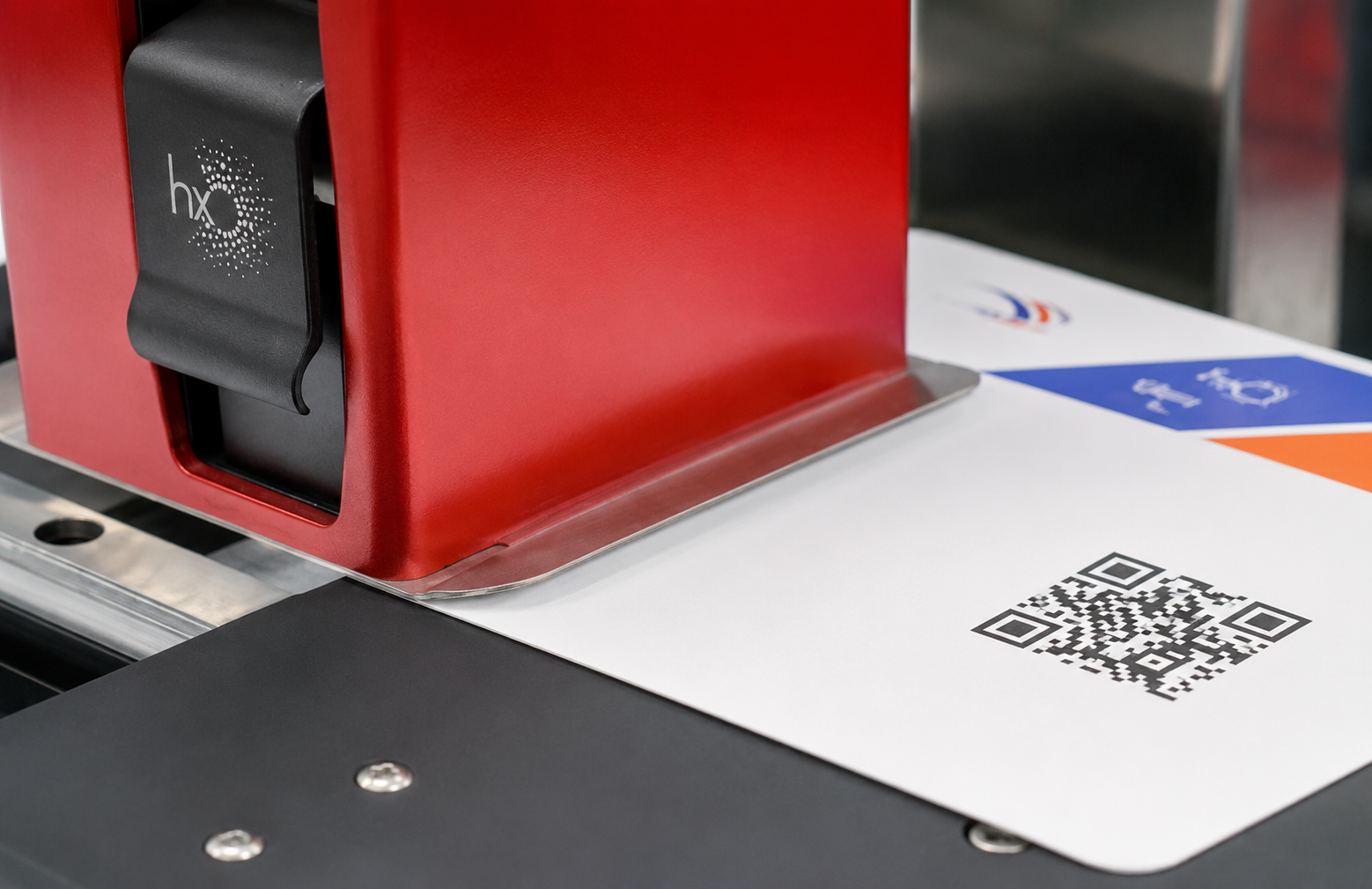

The IPJ Series can print production information including text, lot and batch codes, dates, barcodes, logos and variable data. Operation is simplified through a 10-inch touchscreen tablet, with additional smartphone connectivity for convenient system control.

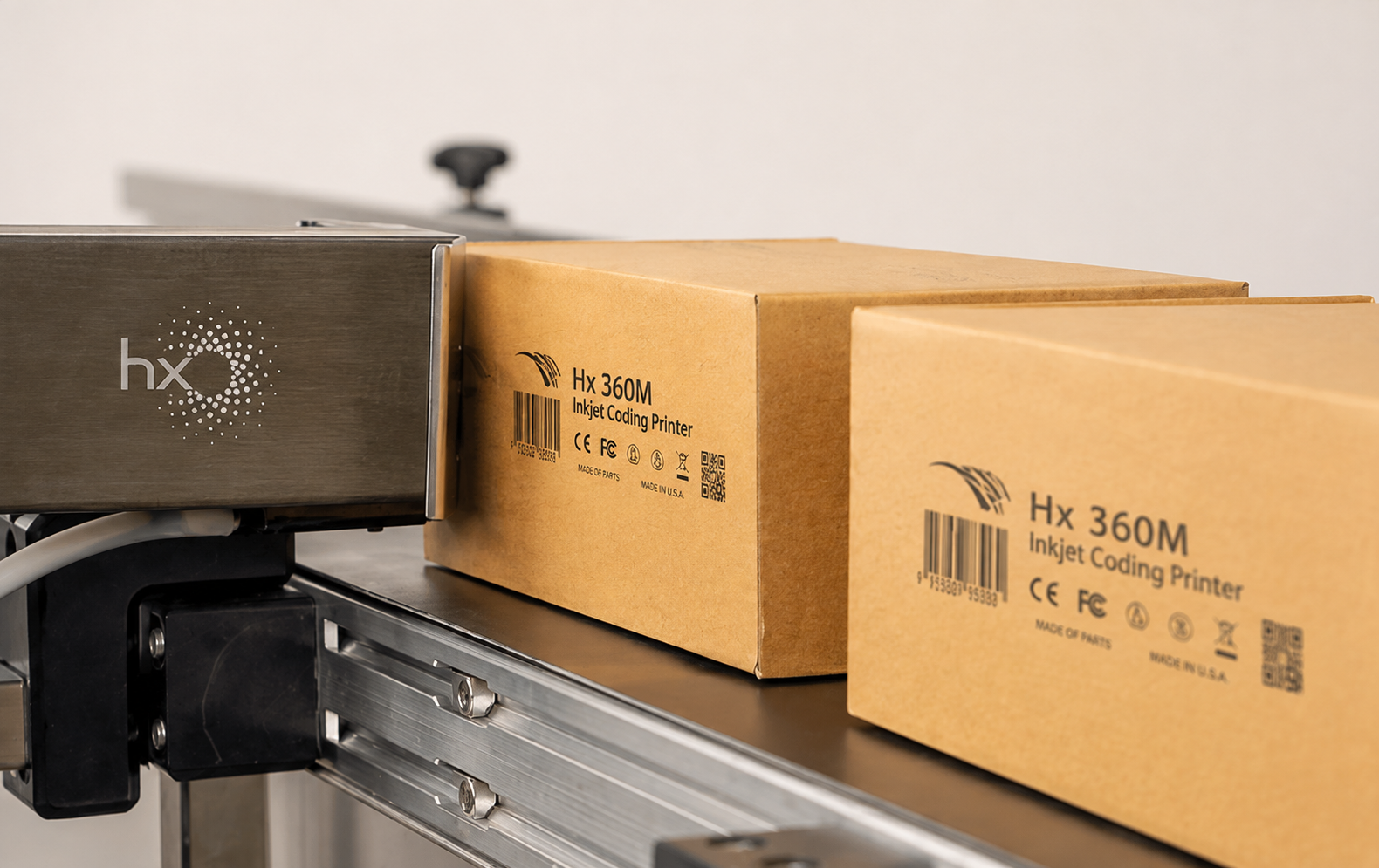

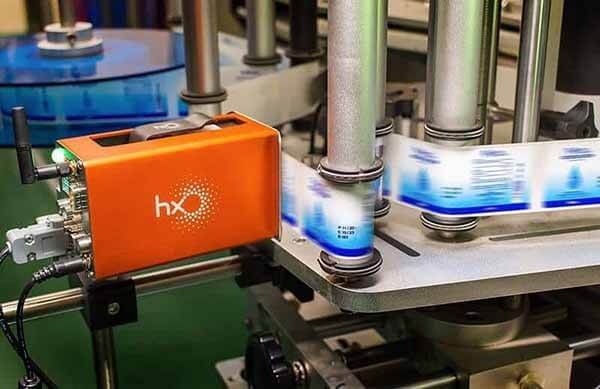

With print heights ranging from 12.5 mm to 70 mm and production speeds up to 240 m/min, the IPJ Series can be integrated directly onto existing conveyors and packaging lines or supplied as part of a complete Saturn turnkey system.
| IPJ-N.5 | IPJ-N1 | IPJ-C | IPJ-M | |
|---|---|---|---|---|
| Printing Technology | TIJ | TIJ | DOD | DOD |
| Maximum Print Height | 12.5 mm | 25 mm | 36 mm | 70 mm |
| Maximum Print Speed | 240 m/min | 240 m/min | 40 m/min | 40 m/min |
| Printing Capacity | 12.5 mm print height | Up to 12 lines at 2 mm | Up to 18 lines at 2 mm | Up to 36 lines at 2 mm |
| Ink Type | Water or solvent based | Water or solvent based | Pigment oil based | Pigment oil based |
| Ink Volume | 33 / 46 ml | 46 ml | 160 ml | 160 ml |
| User Interface | 10" touchscreen tablet and/or mobile app | 10" touchscreen tablet and/or mobile app | 10" touchscreen tablet and/or mobile app | 10" touchscreen tablet and/or mobile app |
Challenge: High-speed wrapping of fresh bread without product deformation. Solution: Integrated flow wrapping line with low-backpressure buffering. Result: 25% increase in line efficiency.
Challenge: Cold-chain handling of liquid cartons. Solution: NEMA 4X rated robotic pickers. Result: 40% reduction in manual labor and improved line safety.
Challenge: High-speed bundling of PET bottles. Solution: Continuous-motion shrink bundler. Result: 15% reduction in film usage and 30% increase in throughput.
