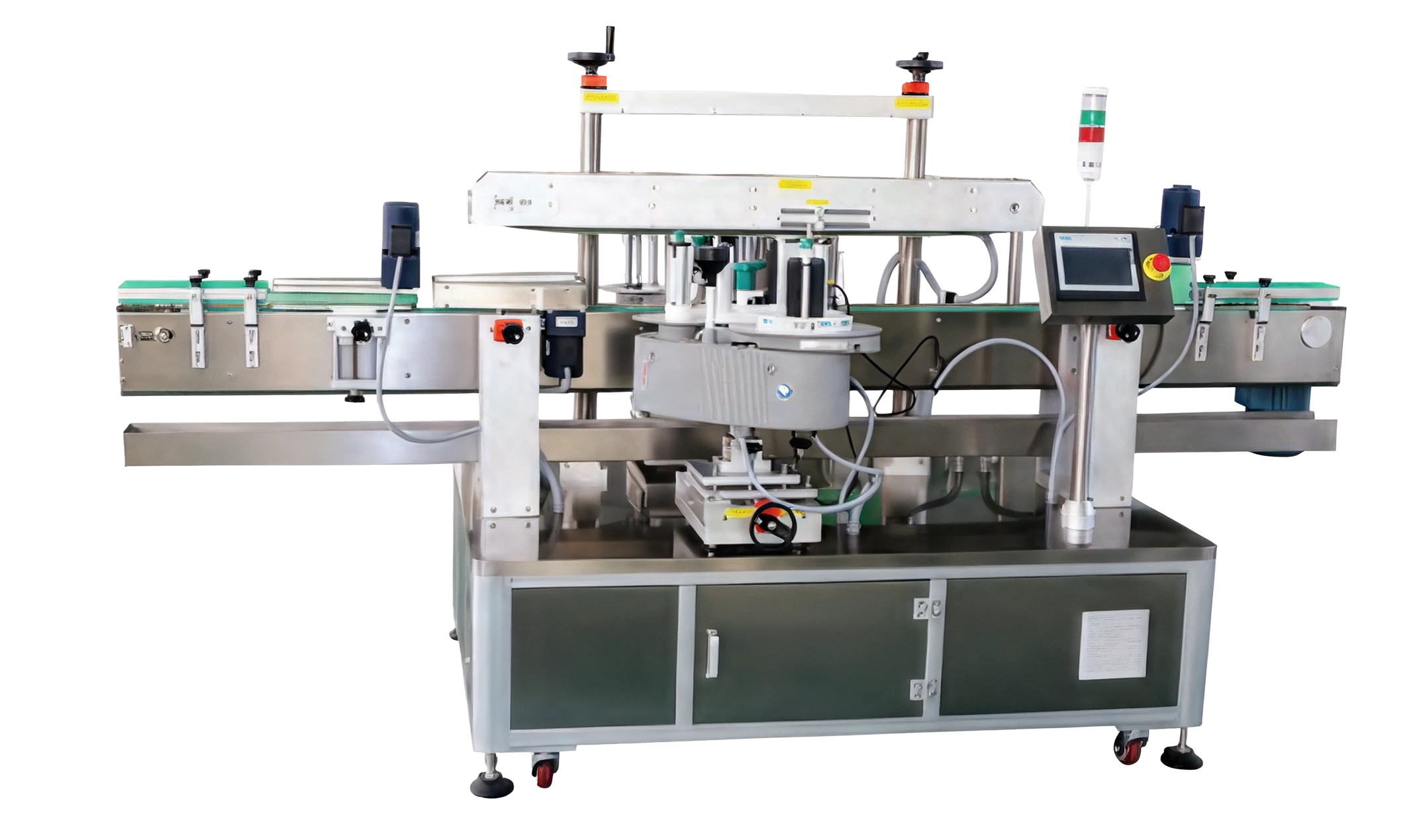

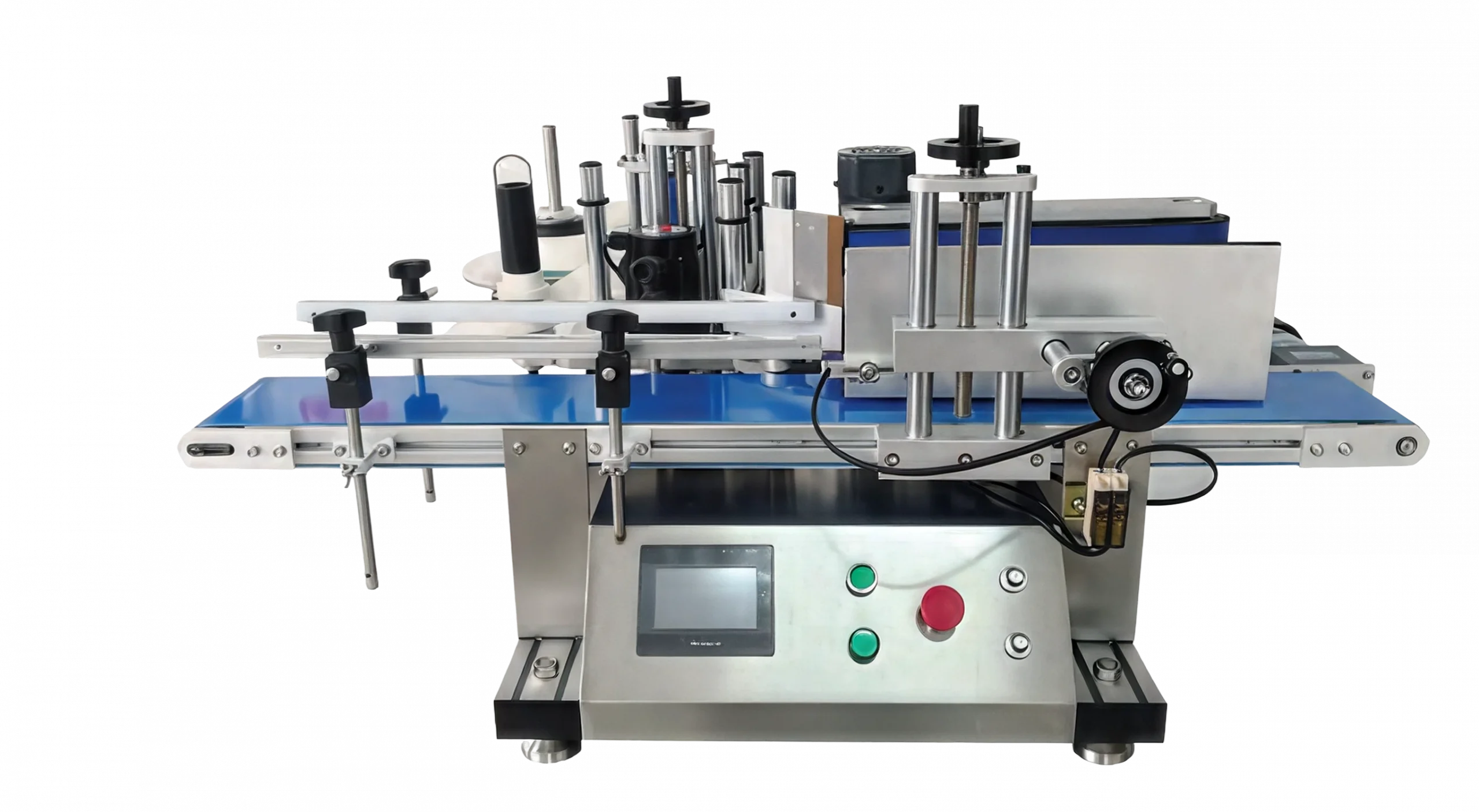

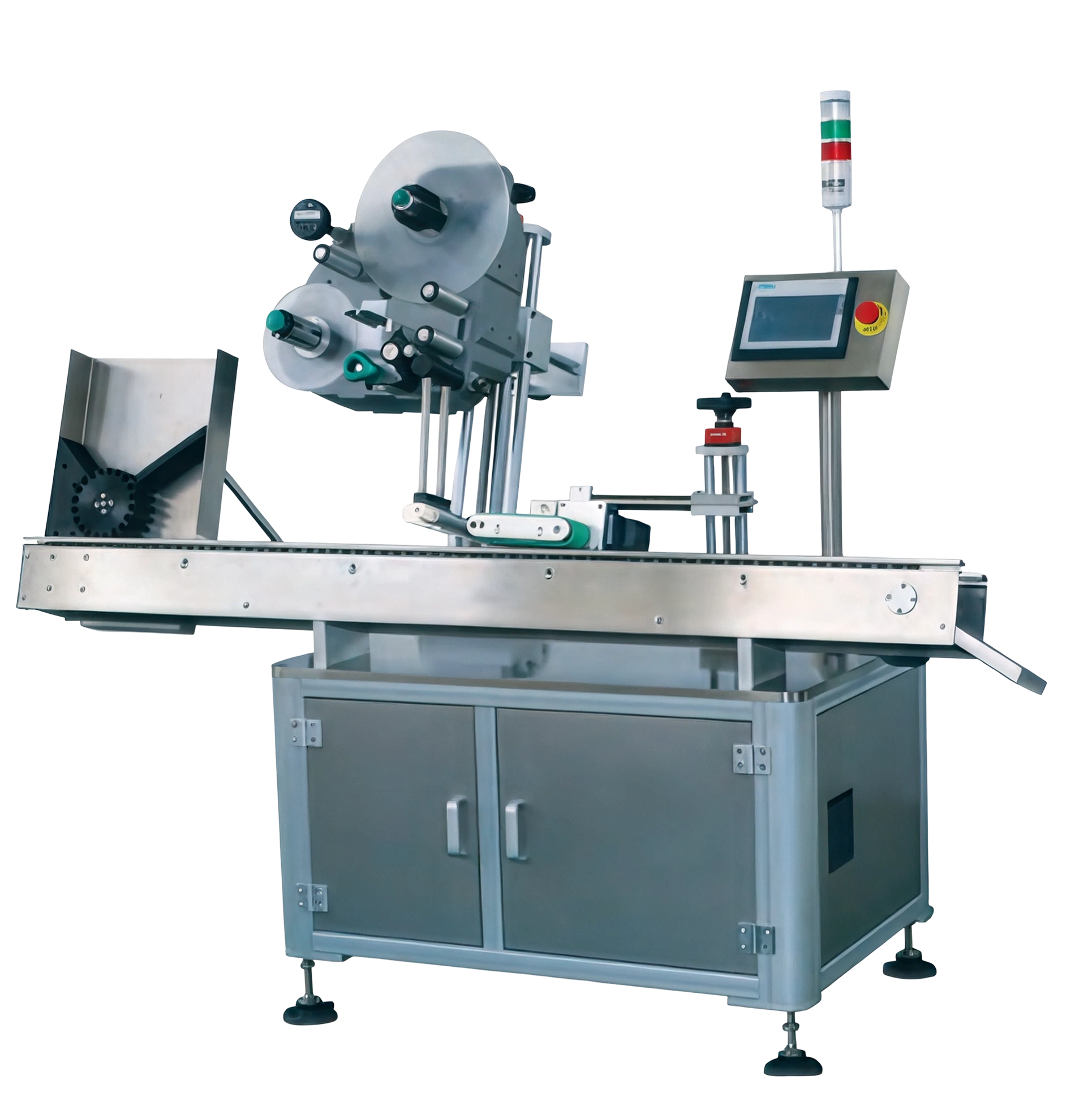

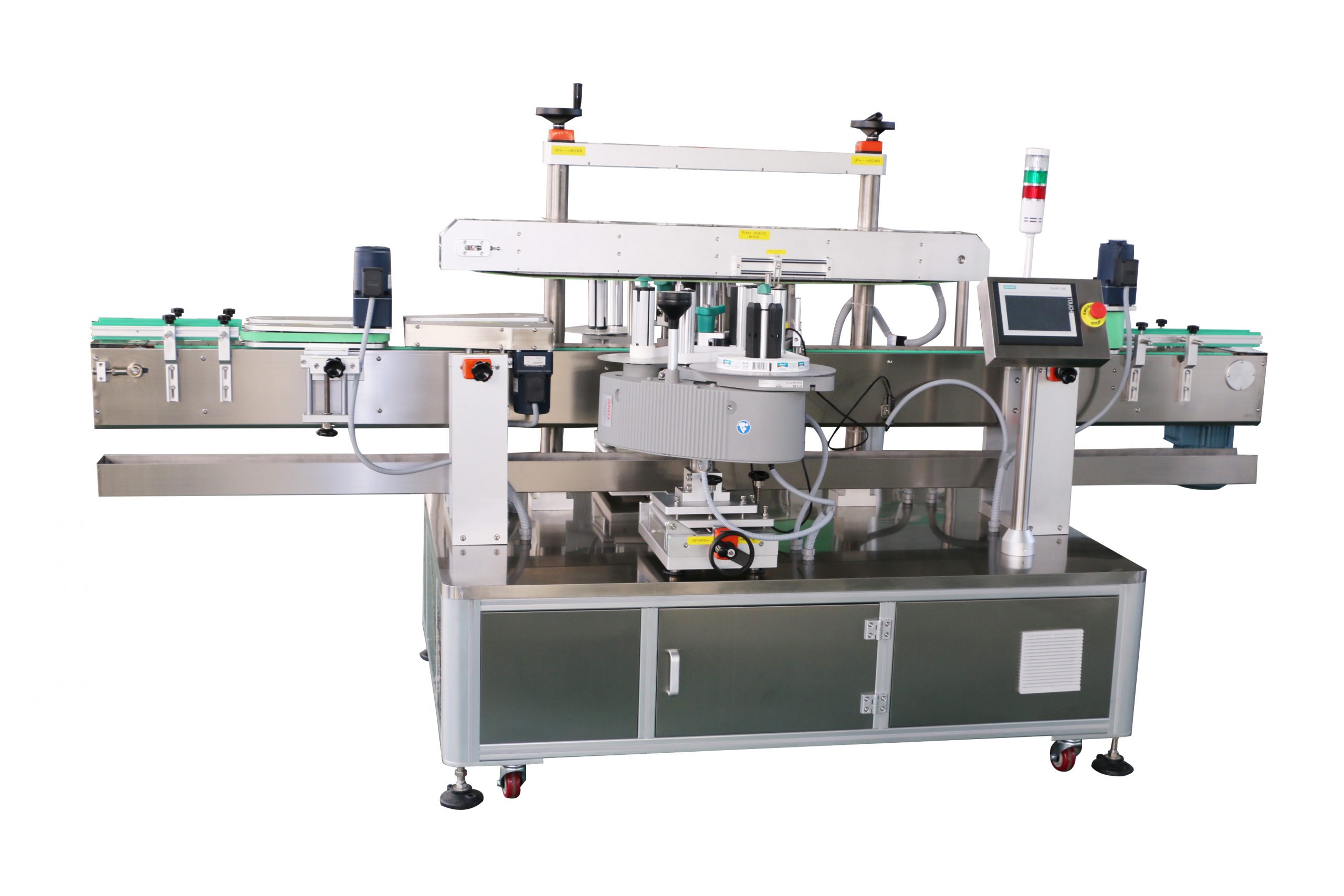

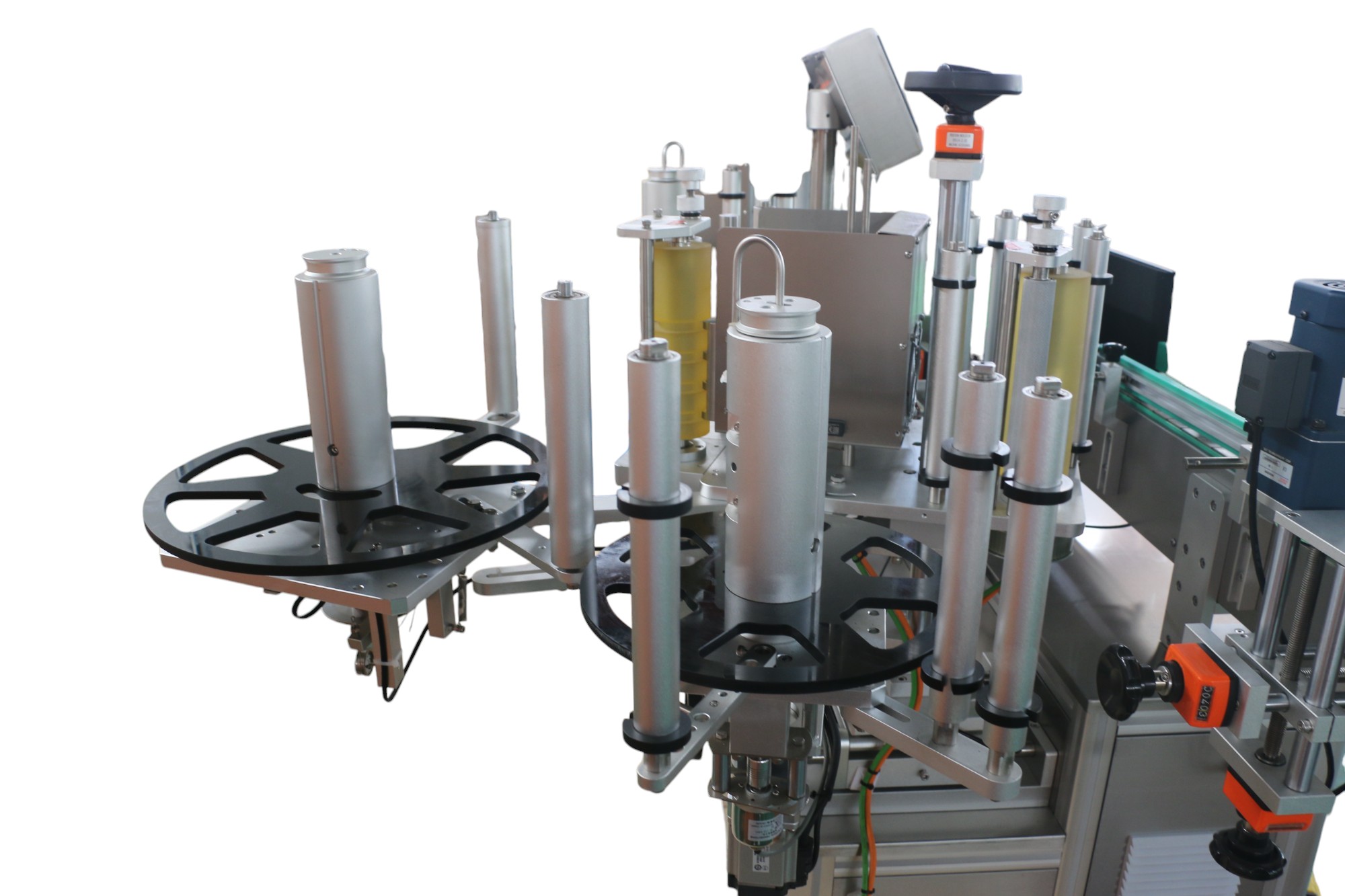

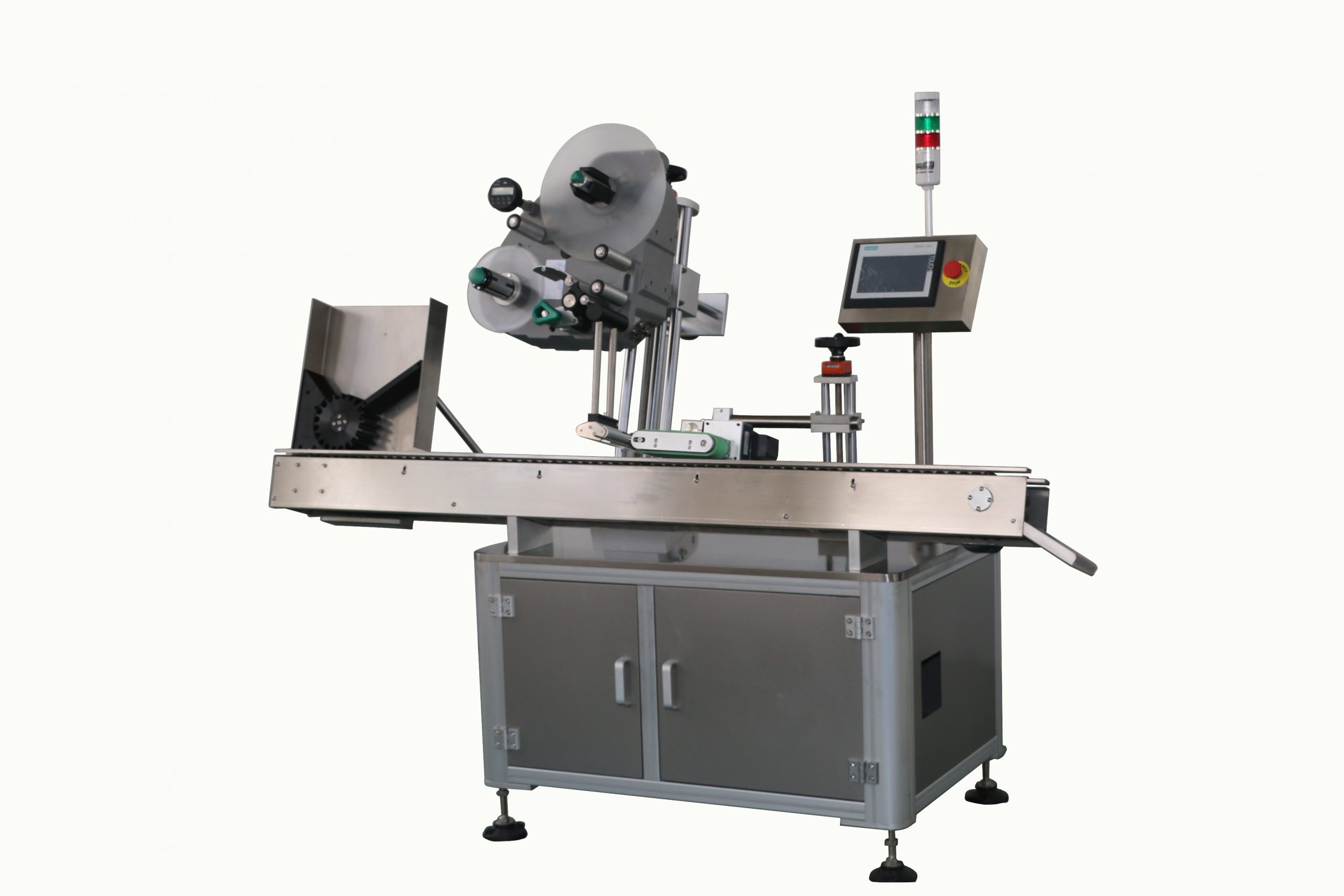

The LA Series Automatic Labeling Machines are designed for high-speed, accurate application of self-adhesive labels across a wide range of products, containers and packaging formats. Applications include bottles, cans, jars, round and conical containers, boxes, cartons, bags, pouches, clamshells, caps and other packaged products.

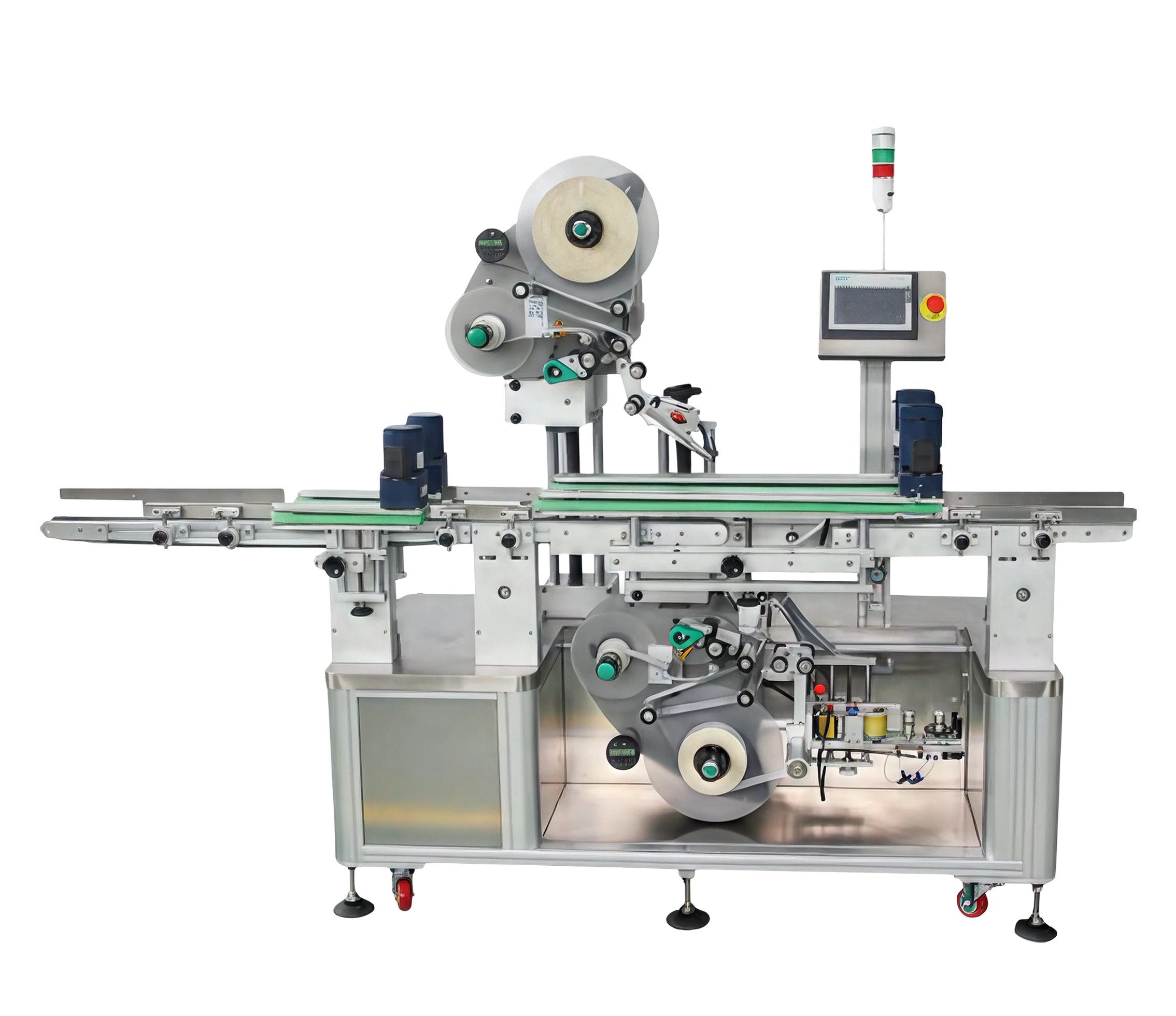

The series offers configurations for top, bottom, side, front and back, wrap-around, corner, multi-side, C-shape and U-stamp labeling, allowing each system to be adapted to the product and required label placement.

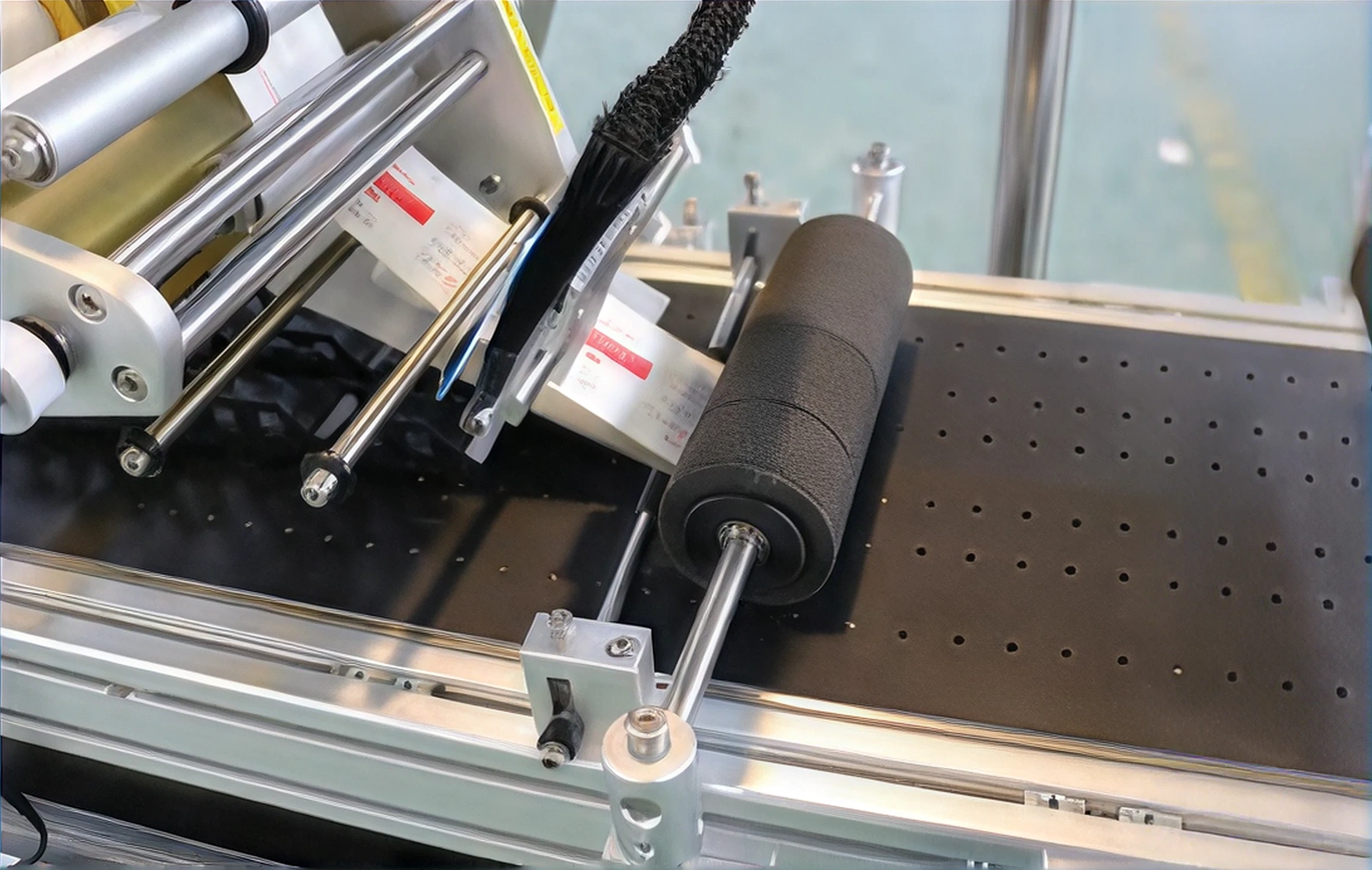

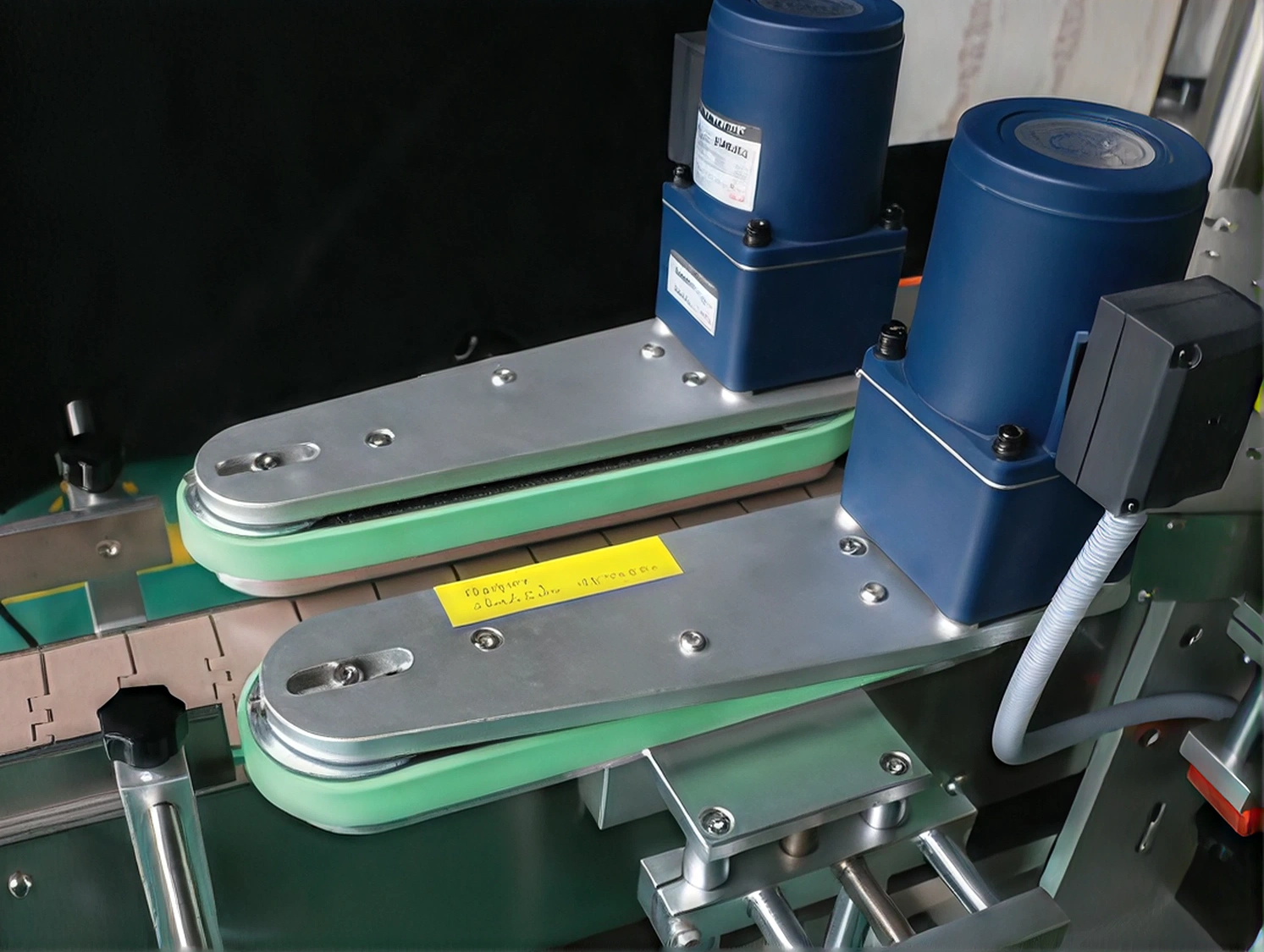

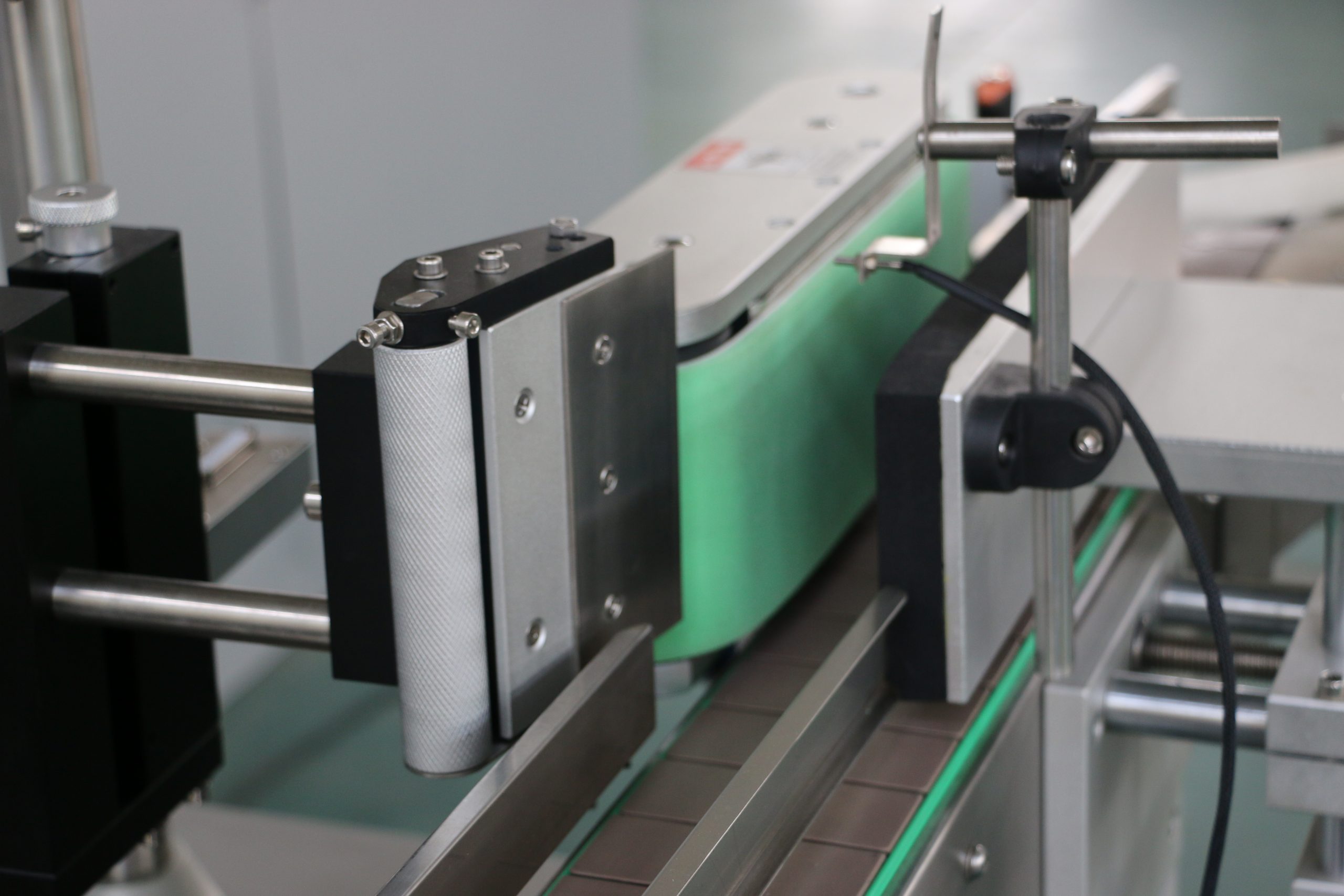

Different product handling and positioning systems can be incorporated to control product spacing, orientation and stability during labeling. The brochure includes solutions for round and conical bottle positioning, product indexing and rolling label application, while systems can be configured with other handling methods according to the application.
The LA Series can be supplied as a standalone labeling machine or integrated into a complete packaging line, with options for printing, barcode reading and inspection to provide a complete automated labeling solution.
| Specification | Options / Details | |
|---|---|---|
| Labeling Positions | Top, bottom, side, front & back | Wrap-around, corner, multi-side, C-shape, U-stamp |
| Product Types | Bottles, cans, jars, boxes, cartons | Bags, pouches, clamshells, caps & more |
| Label Size | From 0.6" × 0.6" | Up to 5.9" × 11.75", model dependent |
| Labeling Accuracy | Approx. ±0.04" | Application dependent |
| Conveyor Speed | Up to 150 FPM | Model & application dependent |
| Product Handling | Multiple handling systems | Positioning, indexing & rolling devices |
| Label Roll I.D. | 3in | Standard |
| Label Roll O.D. | 13in | Standard |
| Printing | Optional printer integration | Markem, videojet, other - Customer preference |
| Inspection | Optional | Barcode reader & inspection systems |
| Configuration | Standalone or inline | Custom line integration |
