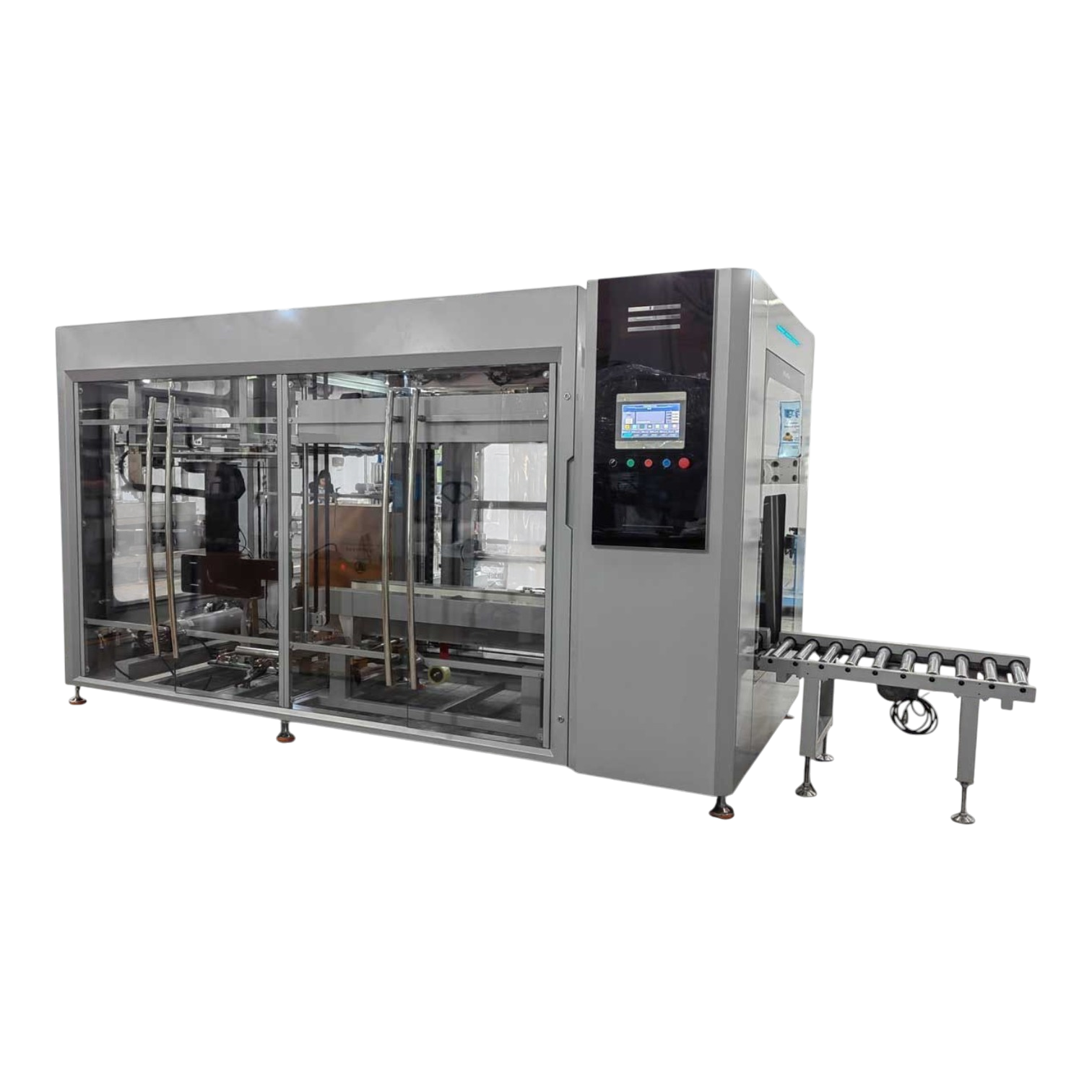

Bag Inserter

The BI / ABI Series provides automated bag-in-box packaging preparation for bulk products, combining automatic bag making and insertion with optional case erecting and downstream bag closing.

The BI-T50 Automatic Bag Inserter is designed for already formed corrugated cases. Cases enter the machine ready for bag insertion. The system automatically forms a bag from rollstock polyethylene film, cuts it to the required length, inserts it into the case, and opens and positions the liner inside the box. The prepared case is then discharged and ready for the filling operation.

The ABI-TK50 Automatic Case Erector & Bag Inserter combines case erecting and bag insertion into a single compact 2-in-1 machine. Flat corrugated cases are automatically picked and erected, the bottom flaps are folded and sealed, and a bag is formed from rollstock film and automatically inserted and positioned inside the case. The finished bag-lined case is then ready to receive the bulk product.

Using rollstock film instead of pre-made bags can simplify material handling and provides flexibility for different bag lengths and case formats.

The systems are ideal for bulk packaging applications involving food ingredients, powders, granules, frozen products, bakery products and other loose or bulk products requiring a protective inner liner inside a corrugated case.

After product filling, an automatic bag closing system can be added as an option. Depending on the application, the downstream system can prepare and close the inner liner before the case proceeds to final case closing and sealing.

The BI / ABI Series can be supplied as standalone equipment or integrated with bulk filling systems, weighing equipment, conveyors, bag closers, case sealers, inspection systems and palletizing equipment to create a complete automated bag-in-box packaging line.
