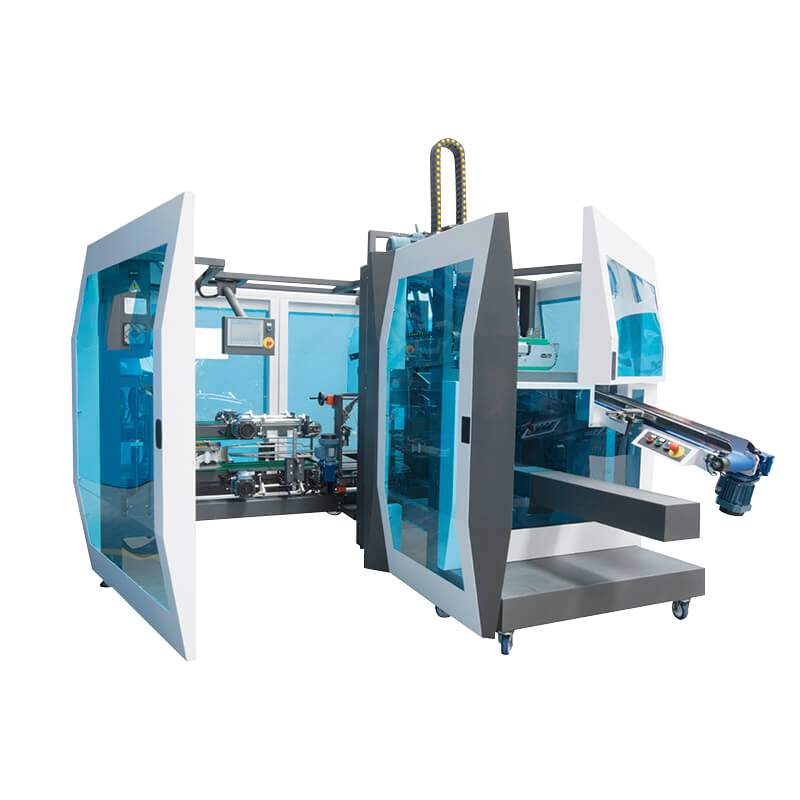

The CP Series Automatic Case Packers are designed to automatically collate, organize and load products into pre-formed corrugated cases, providing a flexible and reliable solution for end-of-line packaging automation.
Available in top-load and side-load configurations, each system is engineered according to the product characteristics, required pack pattern, case dimensions and production speed.

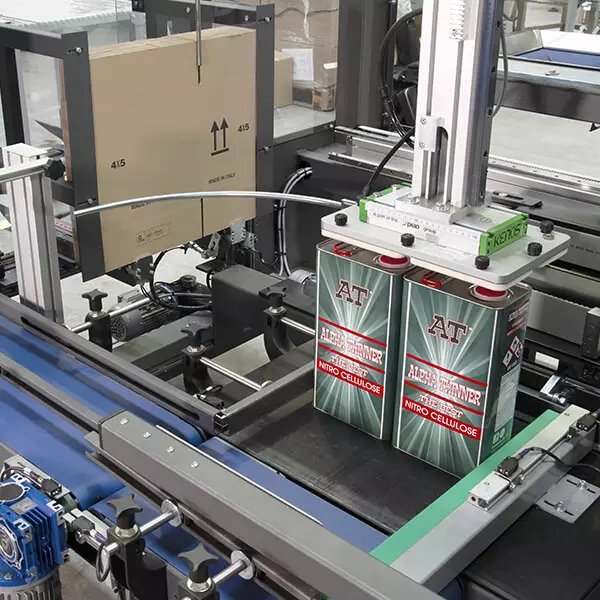

Top-load case packers load products vertically through the open top of the case. Depending on the application, products can be handled using robotic, gantry or pick-and-place systems equipped with application-specific tooling. This configuration provides excellent flexibility for products requiring controlled positioning and placement inside the case.

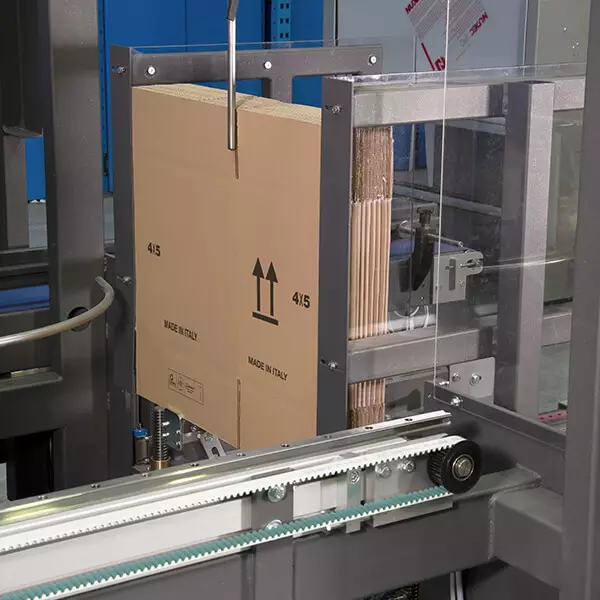

Side-load case packers automatically organize products into the required pack pattern before horizontally loading the complete group into an open case. Products can be arranged into rows, columns, stacks, layers or custom pack patterns depending on the application.
The CP Series can handle a broad range of products including bottles, cans, jars, cartons, boxes, pouches, bags, flow-wrapped products, trays, containers and multipacks.
Multiple product handling and collation technologies can be incorporated, including lane dividers, product stackers, servo collators, indexing conveyors, pushers, pick-and-place systems and robotic handling. This allows the case packing system to be engineered around the specific product and desired case configuration.
Cases can be supplied from an upstream case erector or incorporated case-forming system. Once loaded, the case flaps can be automatically closed and sealed using pressure-sensitive tape or hot melt glue.
Production speeds of up to 25 cases per minute are available depending on the product, case dimensions, pack pattern and loading configuration.
For facilities producing multiple SKUs, the CP Series can incorporate adjustable guides, quick-change components, recipe management and automatic adjustments to simplify product and case format changeovers.
The CP Series can operate as a standalone machine or be integrated with case erectors, conveyors, inspection systems, case sealers, print-and-apply labelers, palletizers and stretch wrappers as part of a complete turnkey end-of-line packaging system.
Challenge: High-speed wrapping of fresh bread without product deformation. Solution: Integrated flow wrapping line with low-backpressure buffering. Result: 25% increase in line efficiency.
Challenge: Cold-chain handling of liquid cartons. Solution: NEMA 4X rated robotic pickers. Result: 40% reduction in manual labor and improved line safety.
Challenge: High-speed bundling of PET bottles. Solution: Continuous-motion shrink bundler. Result: 15% reduction in film usage and 30% increase in throughput.
