The versatile sealers that suit your needs.

Premade Pouch Baggers

Product Features

Ideal for package powder and granular products

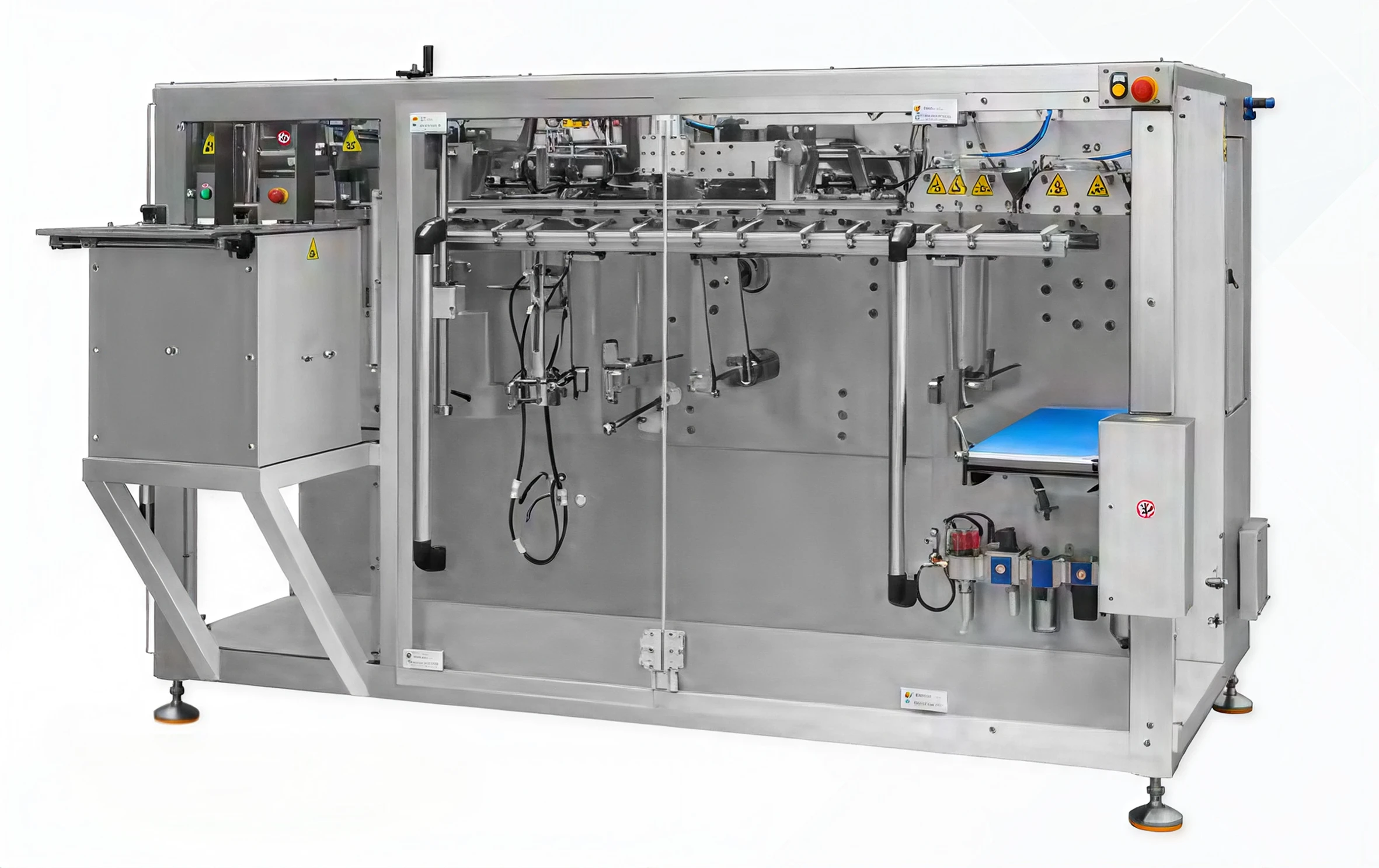

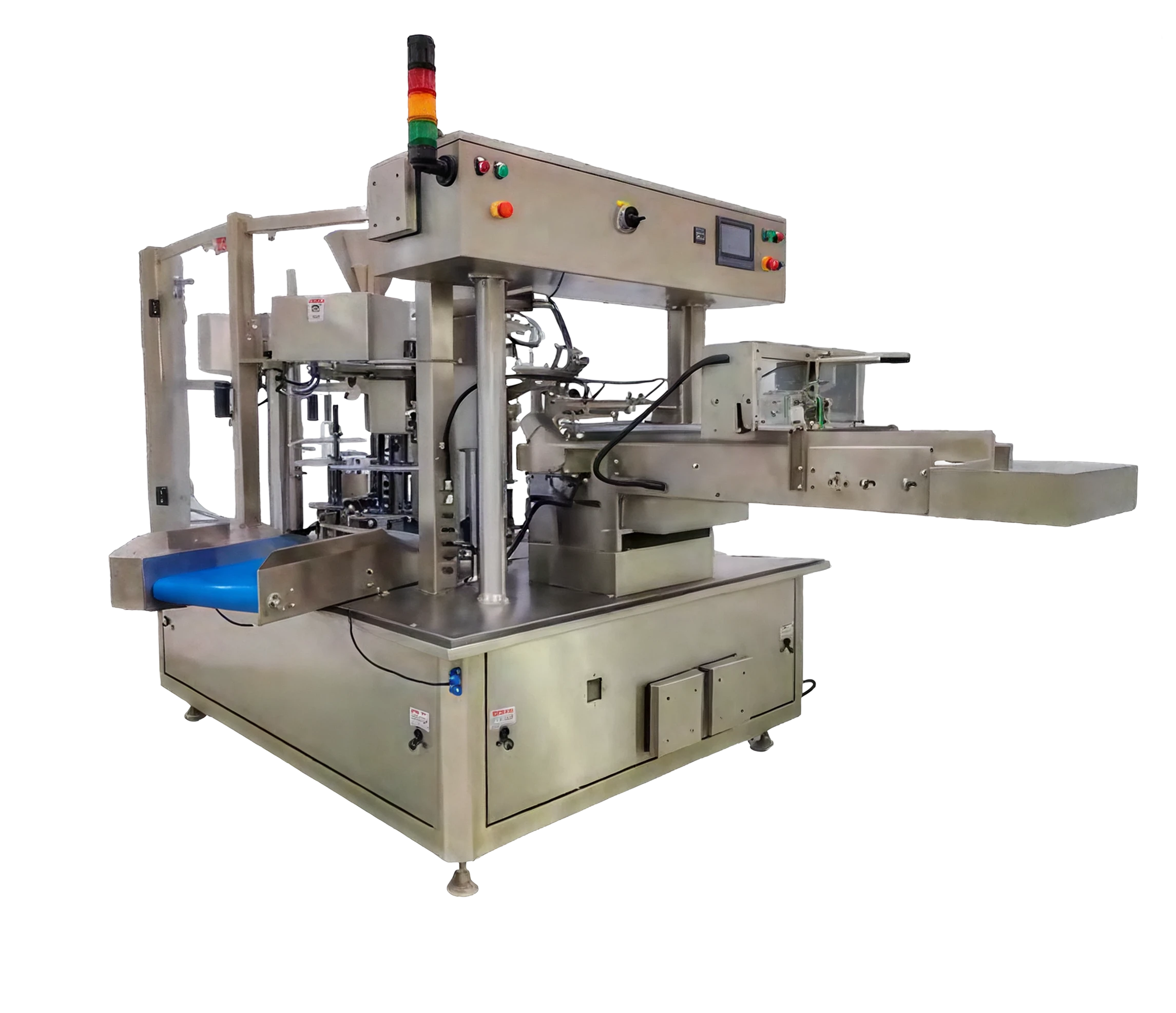

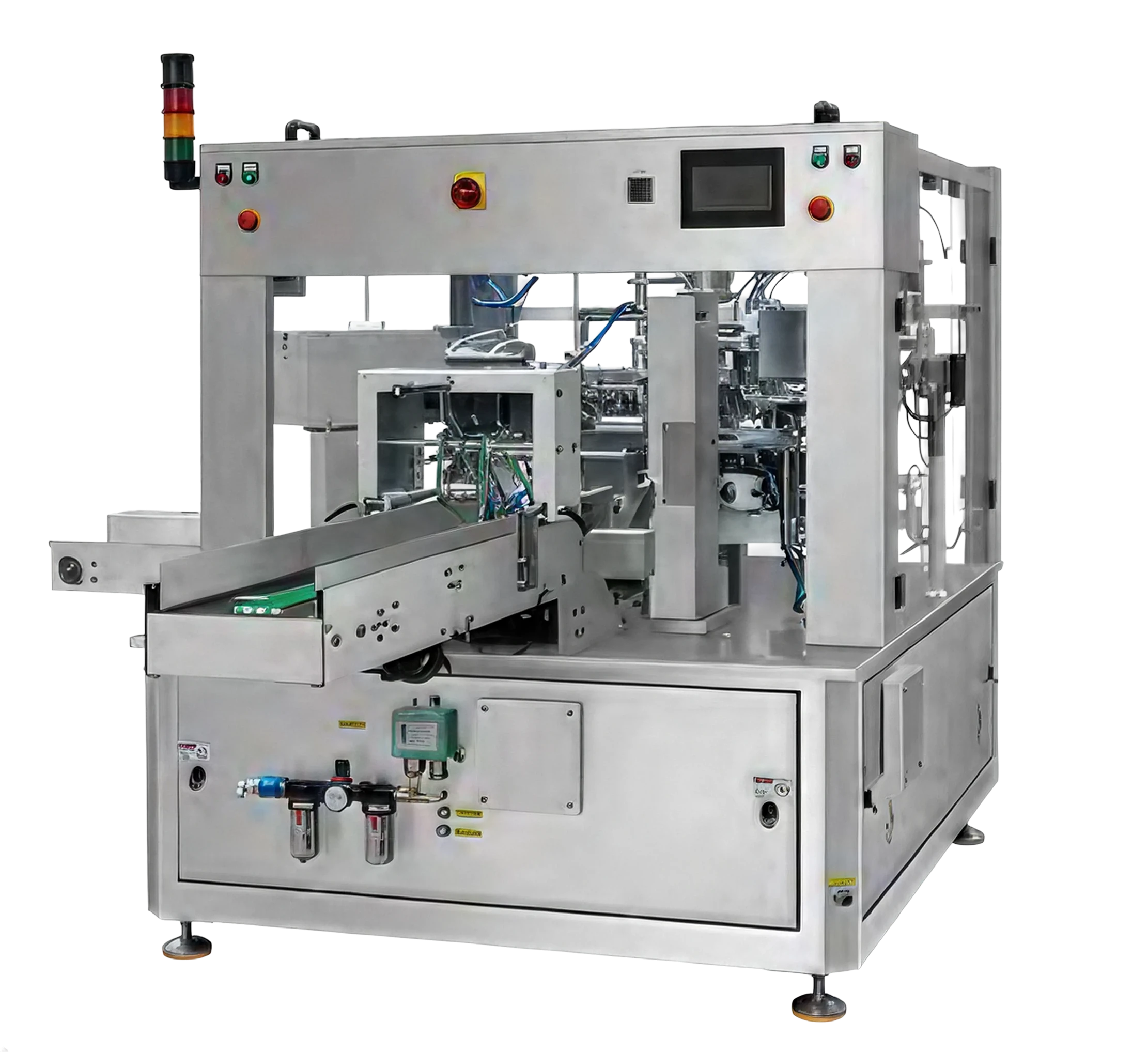

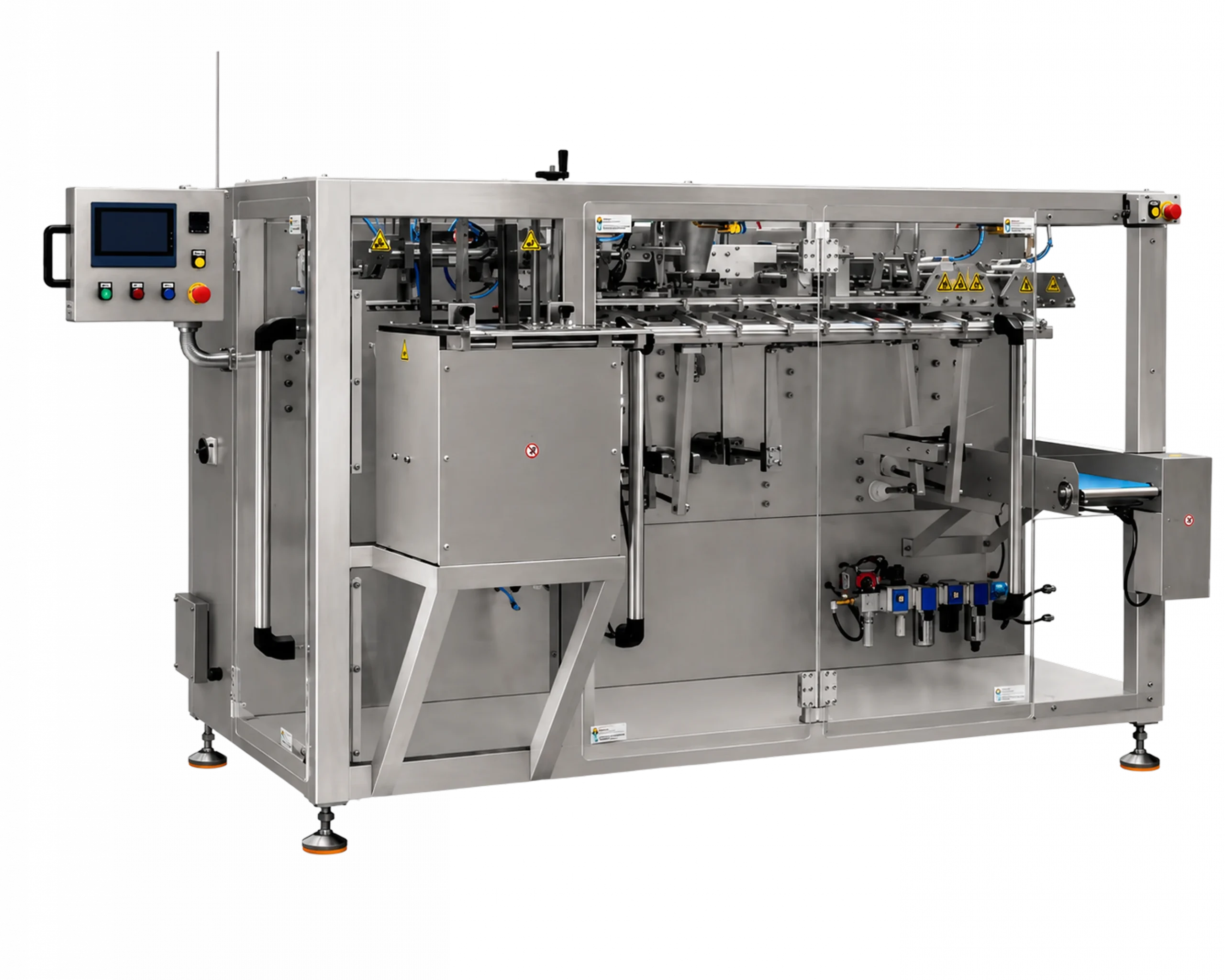

The PB Series pre-made pouch baggers from Saturn Packaging are
available in linear or rotary configurations and are designed to
automatically open, fill, and seal pre-made pouch bags with speed,
accuracy, and repeatability. These machines are an ideal solution for
manufacturers looking to package powder and granular products
efficiently, hygienically, and sustainably.

The COMBO models offer a compact L-bar sealer and shrink tunnel in one frame with high reliability which makes it a very popular product

Simple and easy to use machine with a user friendly interface to cover a vast range of packaged products: cosmetic, pharmaceutical, food, beverage, industrial product. Single or multipack products are manually loaded on the working table. The ergonomic sealing arm covers the heating element which creates the perfect seal. The motorized conveyor eases the product transfer into the heat chamber for the ultimate package.The integrated heat tunnel features a top, bottom and side heated air flow, twin blowers, teflon mesh belt that are all controlled with the SATU digital keypad

Options

  • Settler
  • Mechanical zipper opener
  • SS316 contact parts
  • Dust collection
  • Date coder

Add-ons

  • Screw Auger filler for powder 50L
  • Screw Auger filler with vibration auger for powder 110L
  • Volumetric cup filler for granule
  • Multi head scale system for granule
  • No puch, no fill, no seal
Production Challenges
SALS SERIES

Technical Features

Pouch Machine Specifications Table
Type Drive Pouch dimensions Max filling volume Speed
PMPM-210E Linear Economic model (Pneumatic drive) Pouch size (width) : 100 - 210 mm (3.9 - 8.3 in) Pouch size (length) : 150 - 350 mm (5.9 - 13.8 in) 10 - 25
PMPM-210 Linear Motorized drive with cam Pouch size (width) : 100 - 210 mm (3.9 - 8.3 in) Pouch size (length) : 150 - 350 mm (5.9 - 13.8 in) 20 - 45
PMPM-280 Linear Motorized drive with cam Pouch size (width) : 100 - 280 mm (3.9 - 11.0 in) Pouch size (length) : 150 - 400 mm (5.9 - 15.7 in) 20 - 40
PMPM-250G Linear Motorized drive with cam (for gusset bags) Pouch size (width) : 100 - 250 mm (3.9 - 9.8 in) Pouch size (length) : 200 - 500 mm (7.9 - 19.7 in) 10 - 20
R8-PMPB Rotary Motorized Bag width : 100 - 230 mm (3.9 - 9.1 in) Bag length : 150 - 330 mm (5.9 - 13.0 in) 2L 20 - 45
R8-PMPB-XL Rotary Motorized Bag width : 150 - 300 mm (5.9 - 11.8 in) Bag length : 200 - 450 mm (7.9 - 17.7 in) 5L 15 - 35
Pouch format Flat · Doypack · Stand-up · Zipper · Side spout · Gusset pouch
Power supply 220V, 3-phase, 60 Hz
